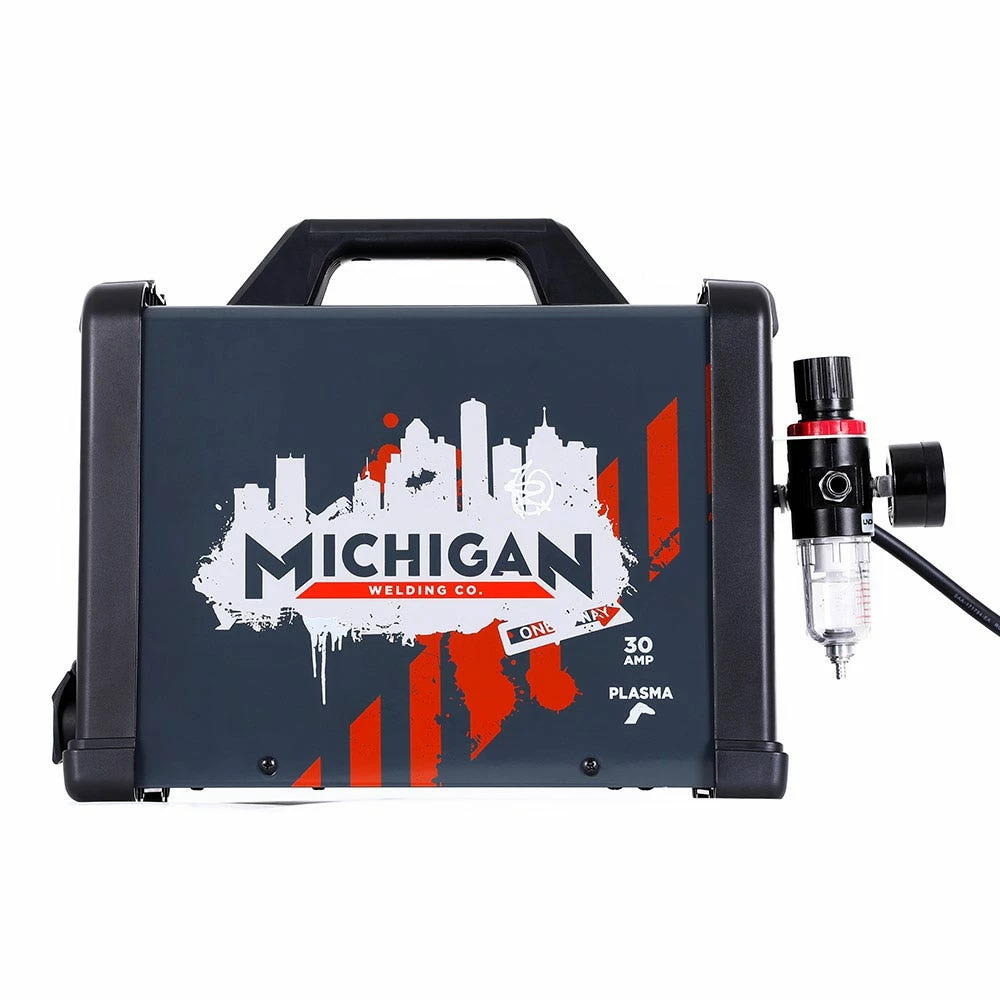

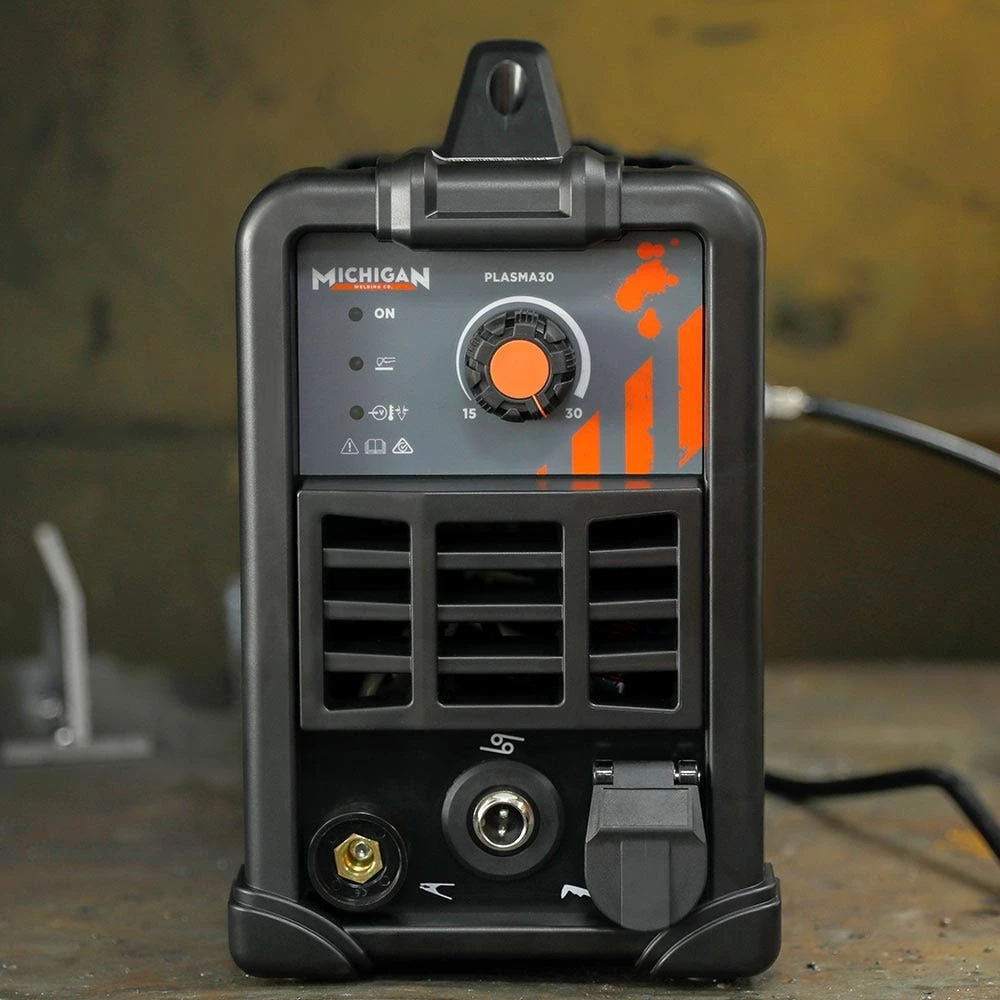

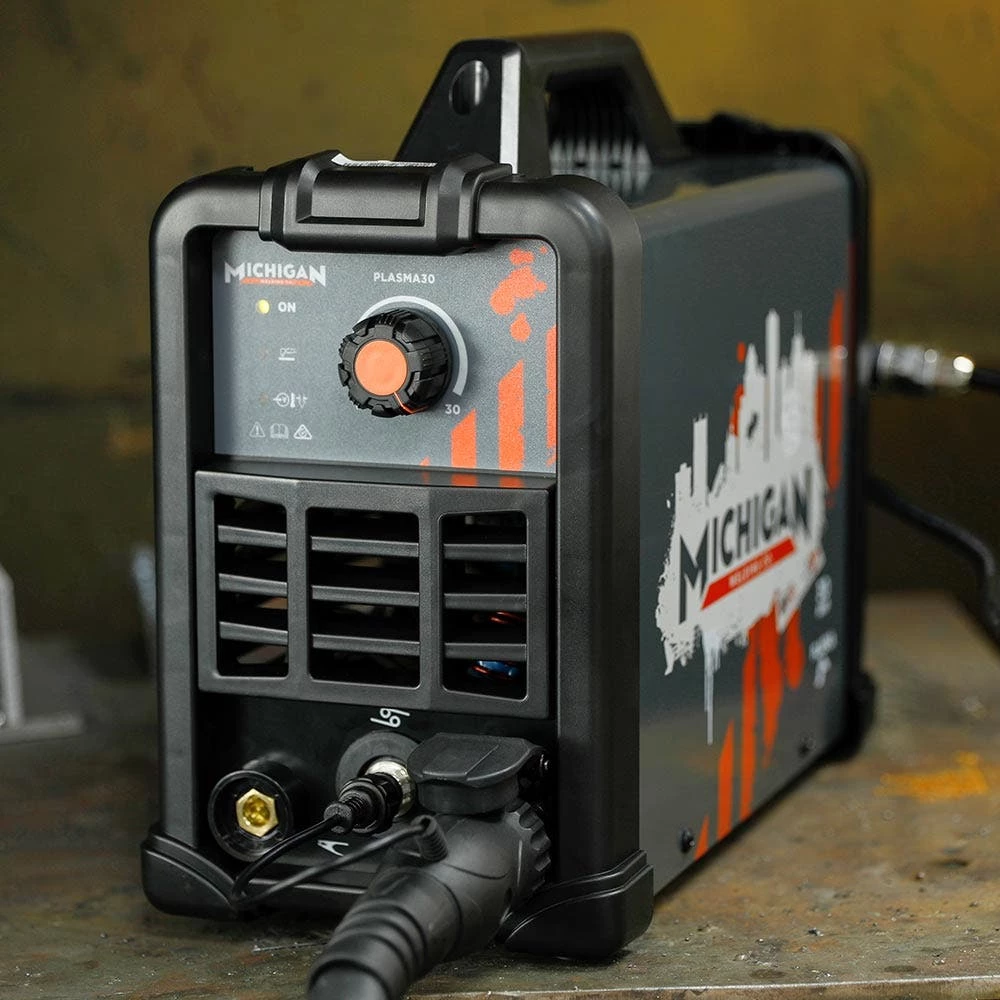

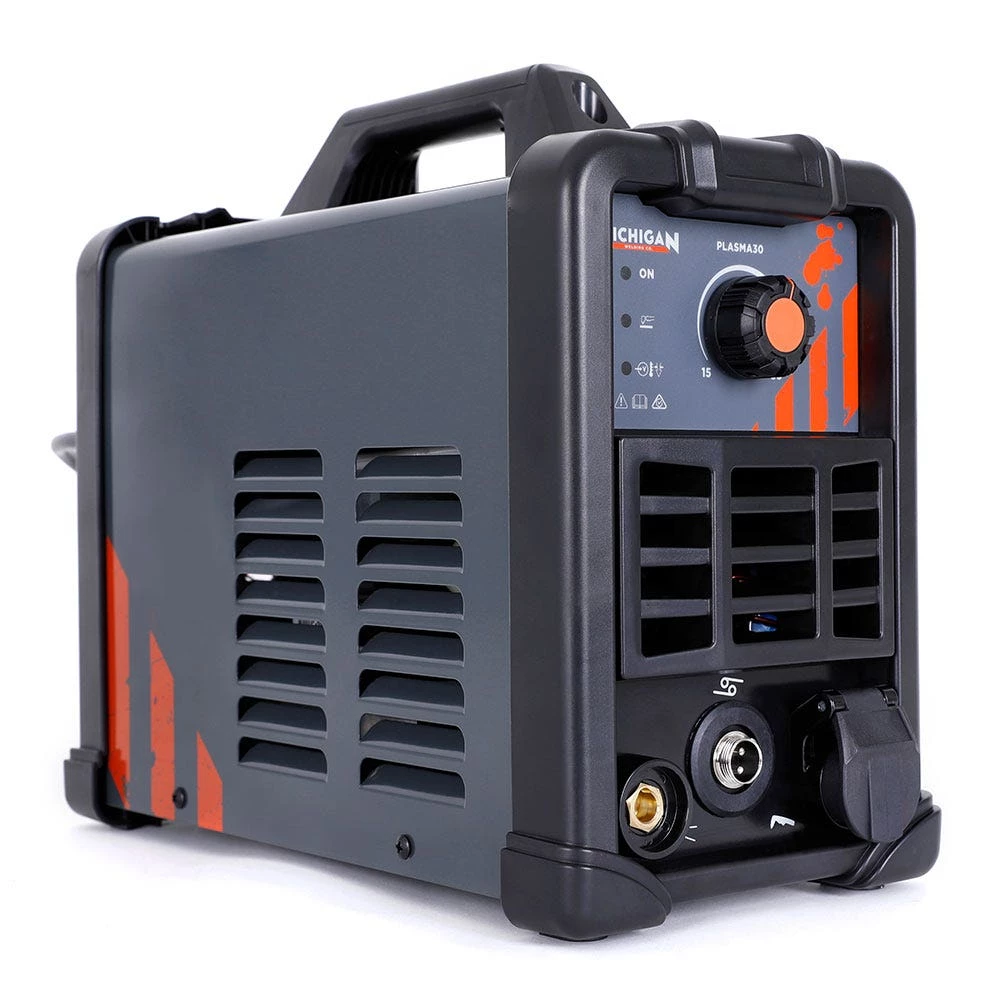

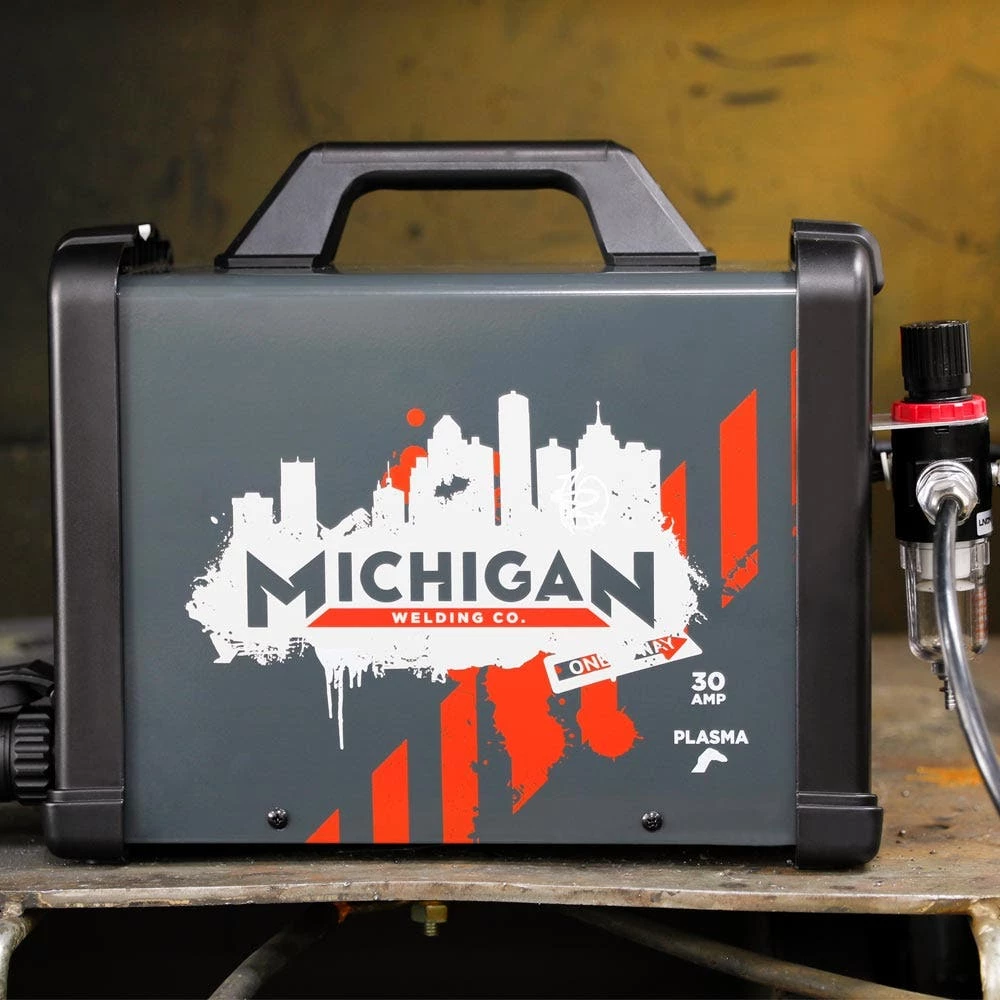

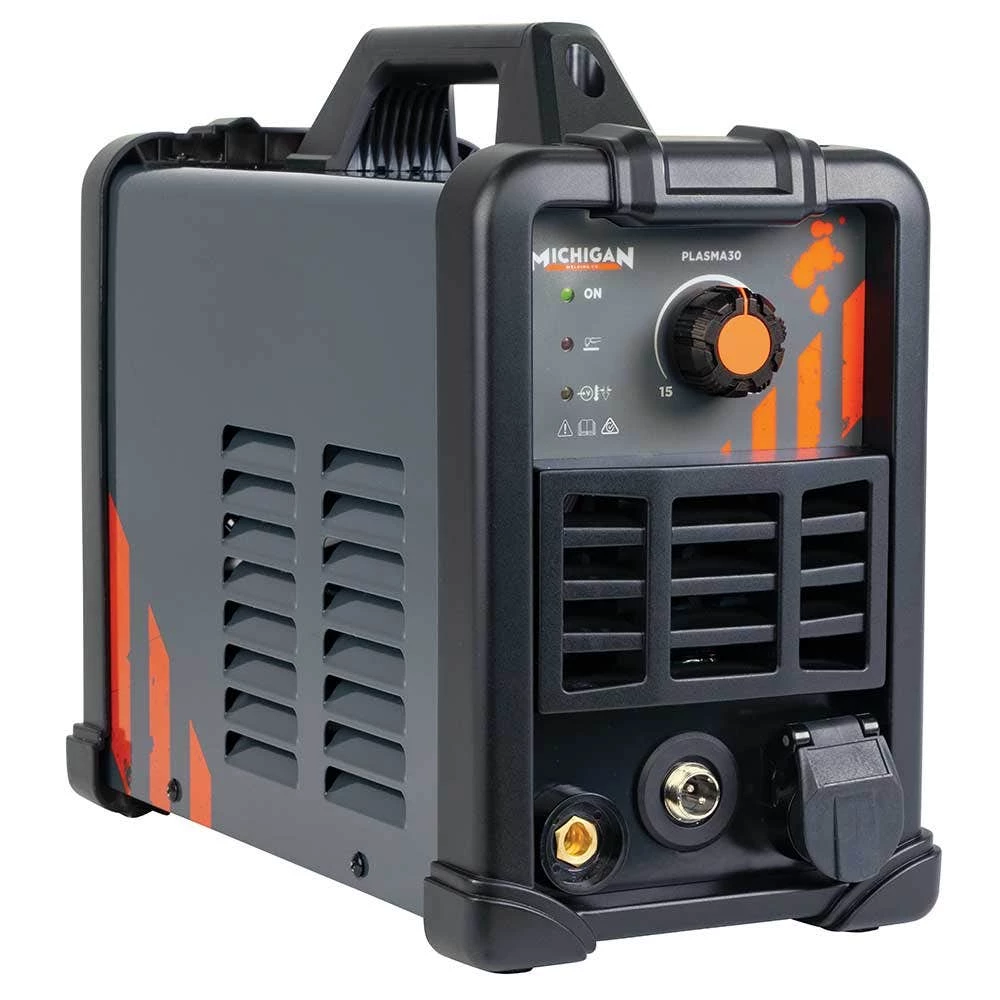

MICHIGAN 30A Plasma Cutter PLASMA30

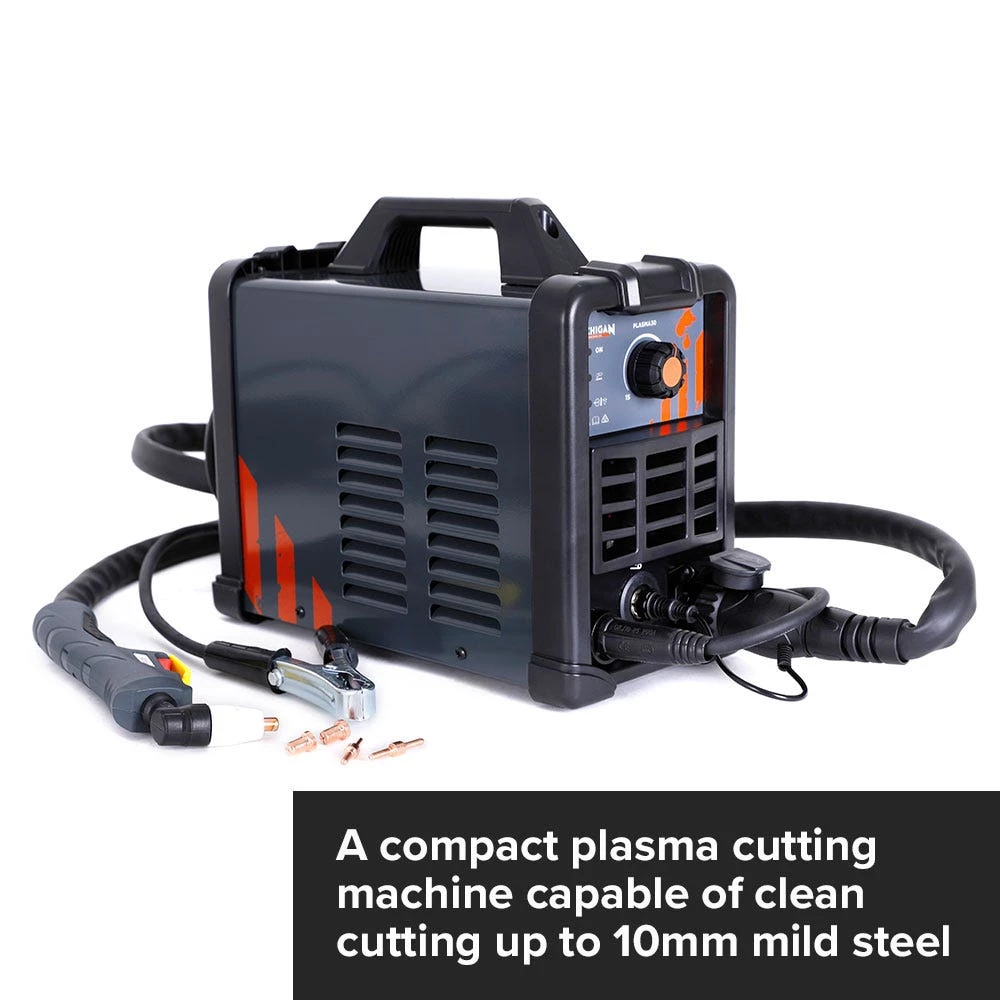

• A compact plasma cutting machine capable of clean cutting up to 10mm mild steel.

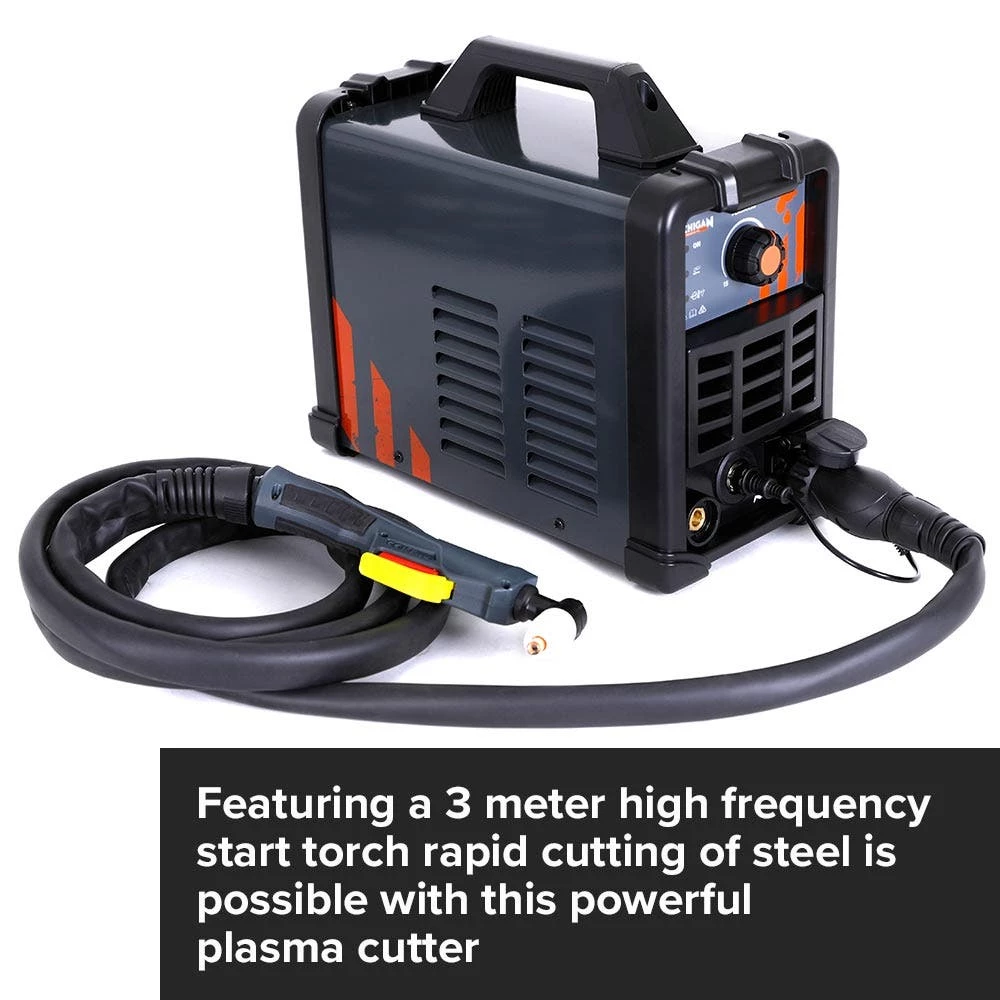

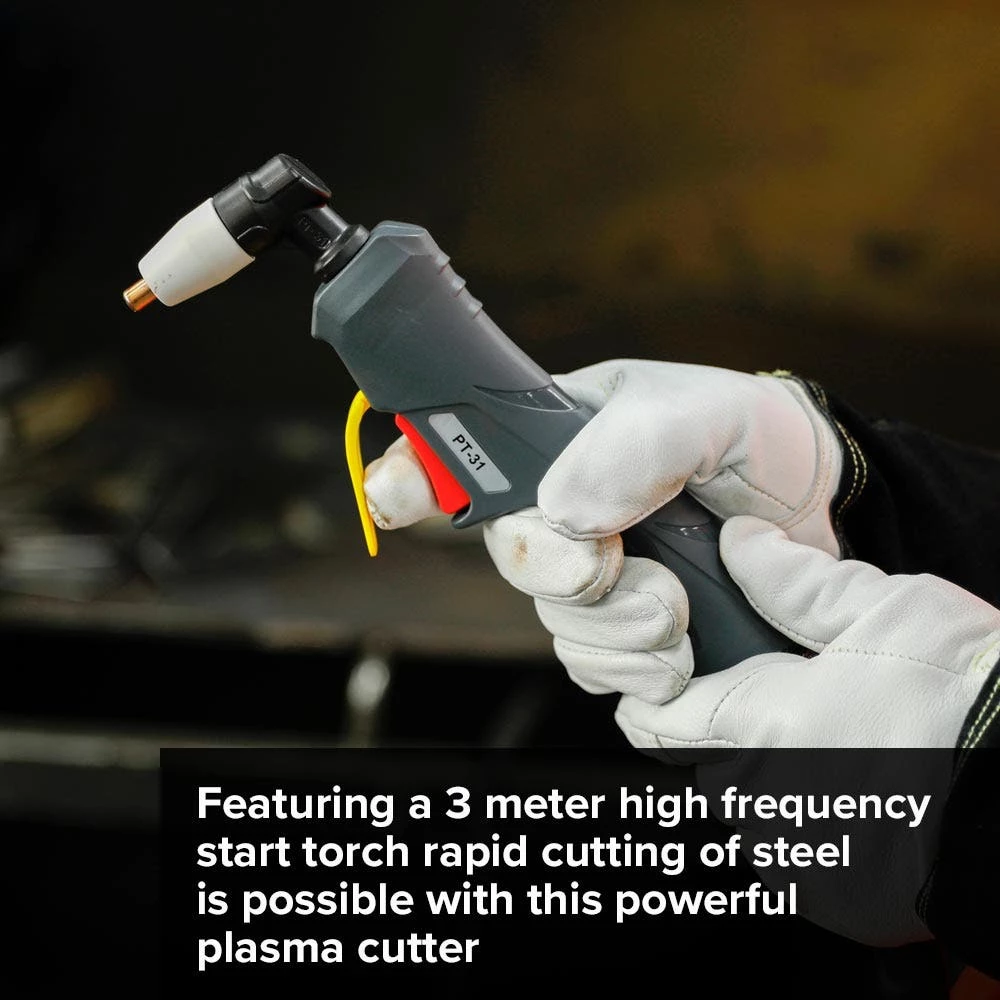

• Featuring a 3 meter high frequency start torch rapid cutting of steel is possible with this powerful plasma cutter.

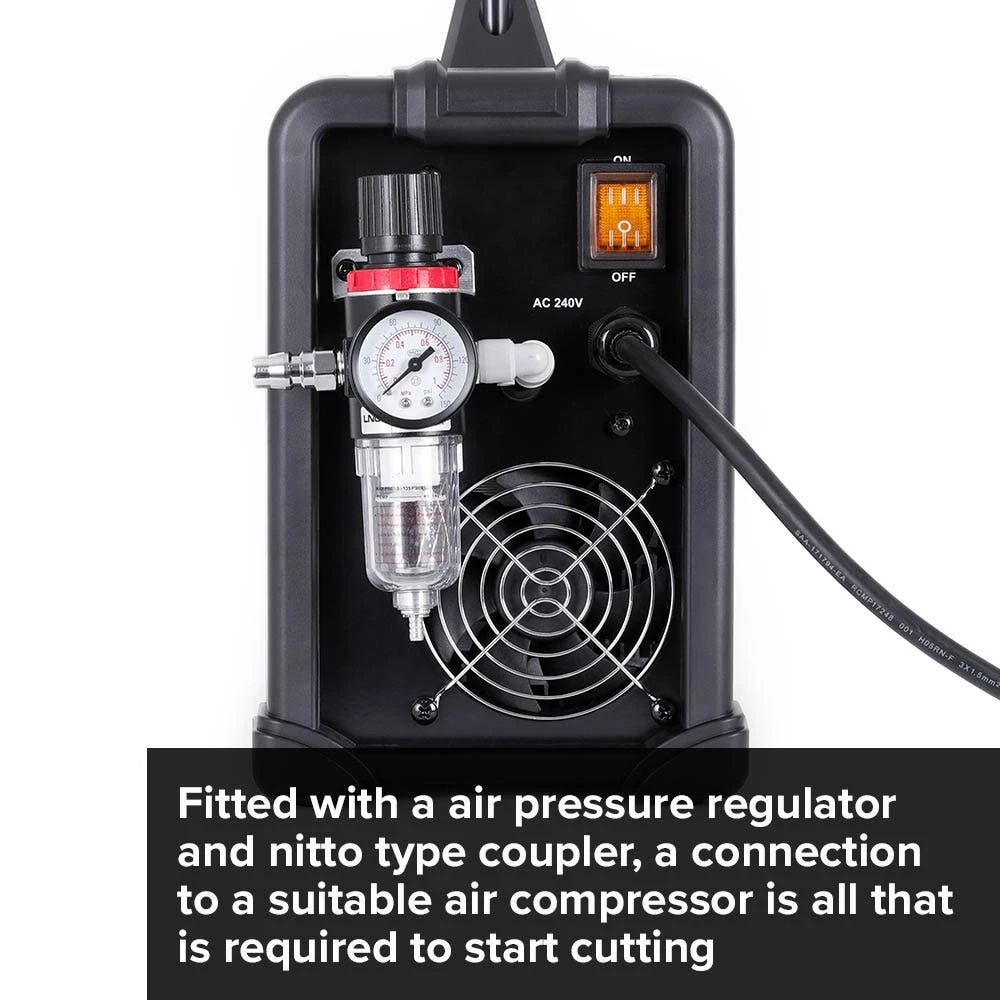

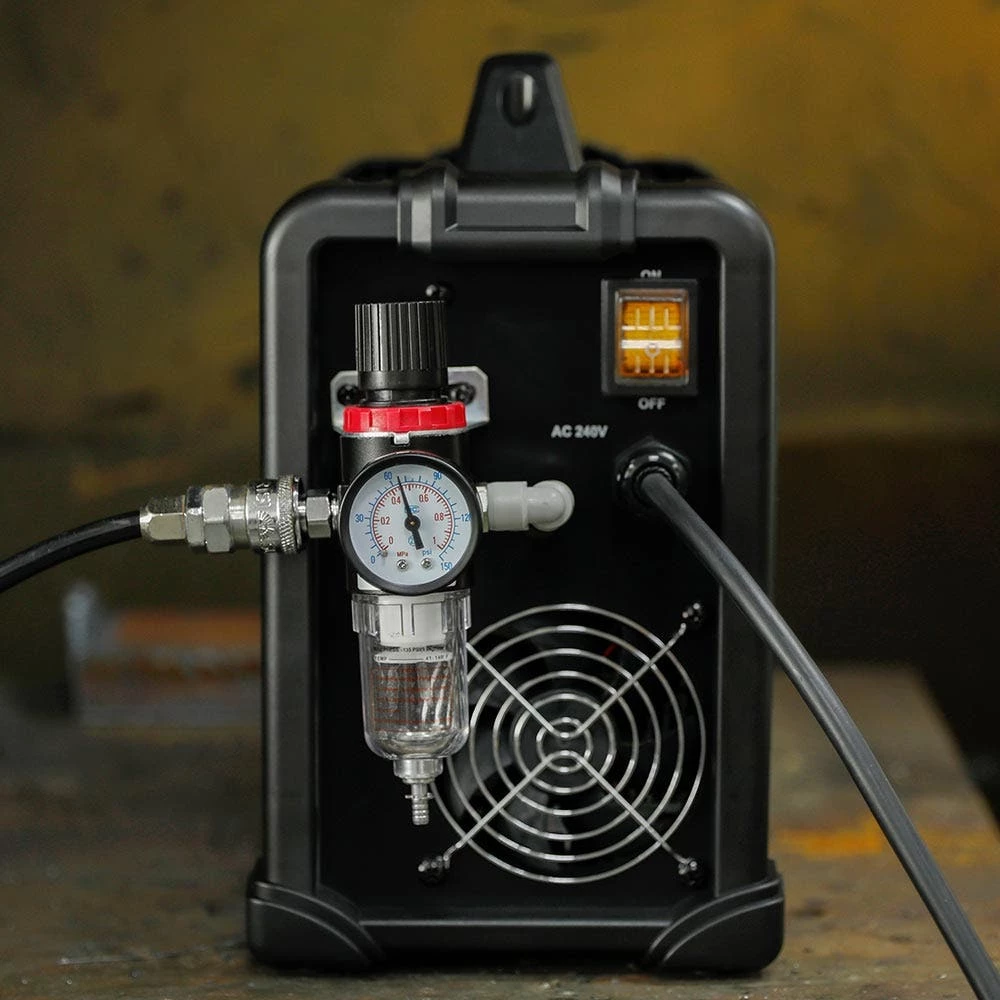

• Fitted with a air pressure regulator and nitto type coupler, a connection to a suitable air compressor is all that is required to start cutting.

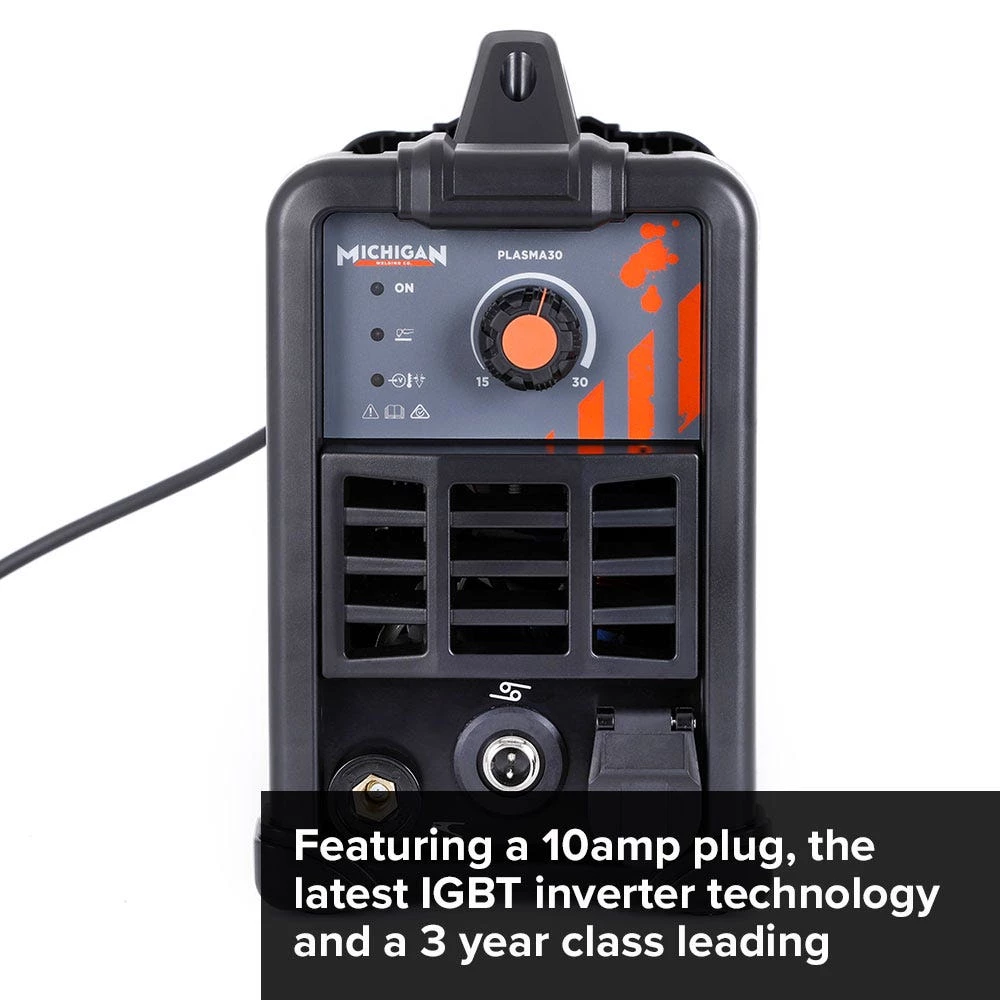

• Featuringa 10amp plug, the latest IGBT inverter technology and a 3 year class leading warranty.
• Powerful & compact Plasma Cutting Machine

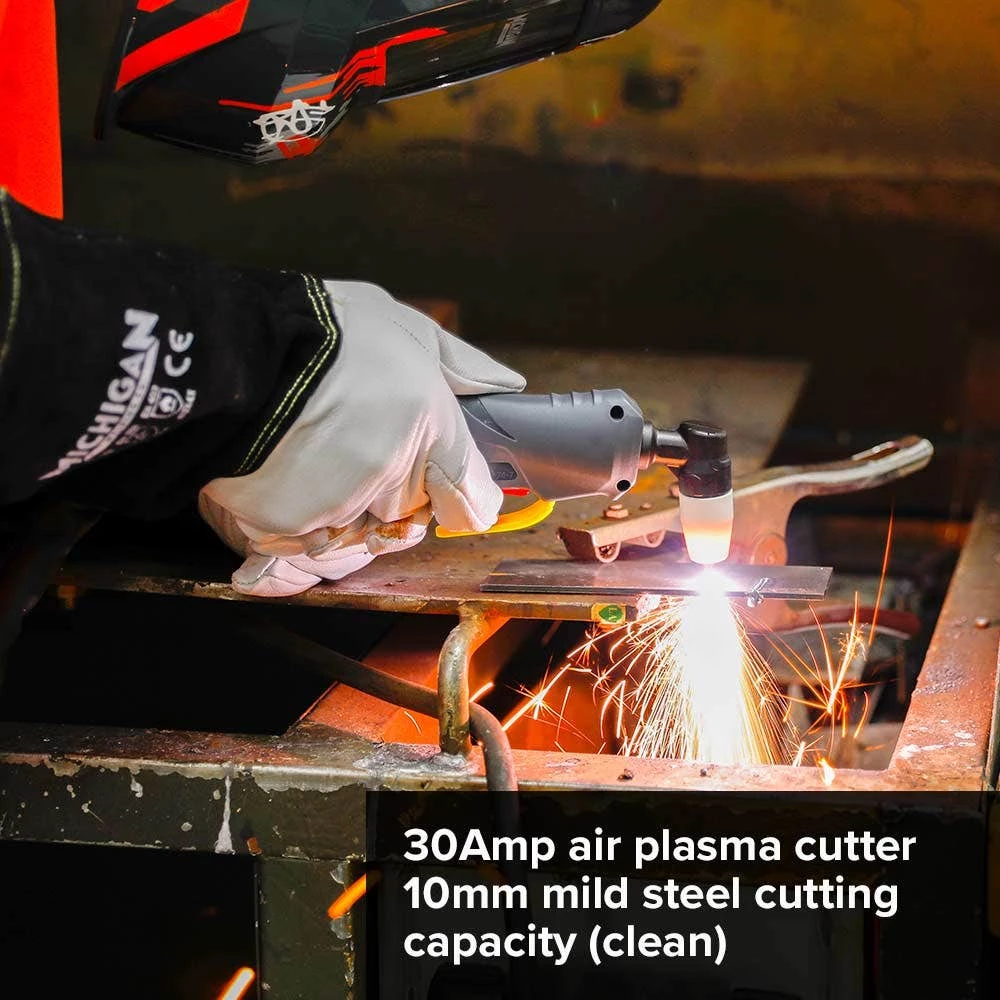

• 30Amp Air Plasma Cutter
• 10mm Mild steel cutting capacity (clean)
• Fitted with thermal overload switch to prevent damage to internal components
• Fan cooled
• IGBT Inverter Technology

Specifications:

• Input voltage: 240V/50Hz (+/- 15%)
• Plug & cable: 10A, 3G1.5mm2 Core (2m length)
• Output amp range: 15-30A
• Maximum clean cutting thickness: 10mm
• Duty Cycle 25% @ 30A
• Recommended generator size – 12kVA
• Power source weight 10kg
• Compressed air requirement: 200L/min, 6 bar (90psi)
• IP Rating IP21S
• Compliant to AS60974.1

Includes:

• 30A Plasma Cutter

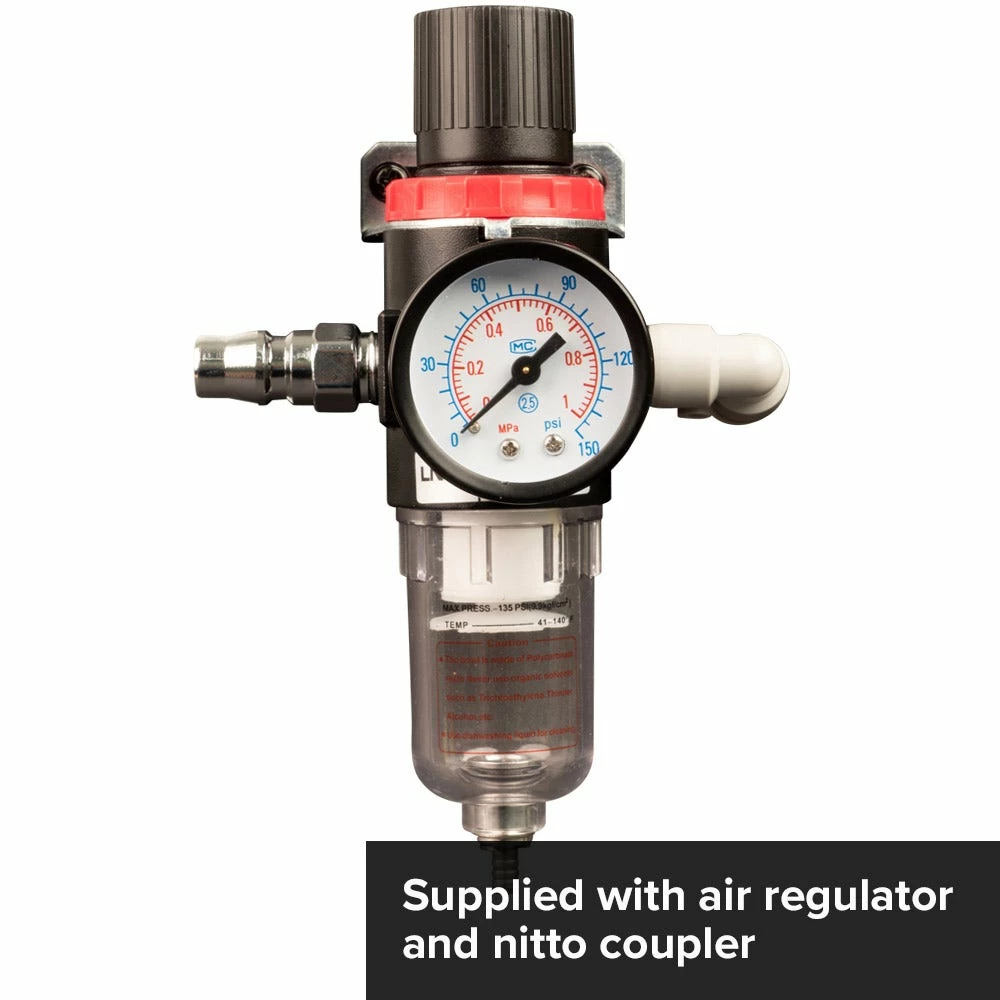

• Regulator, connector & 1 nitto type coupler

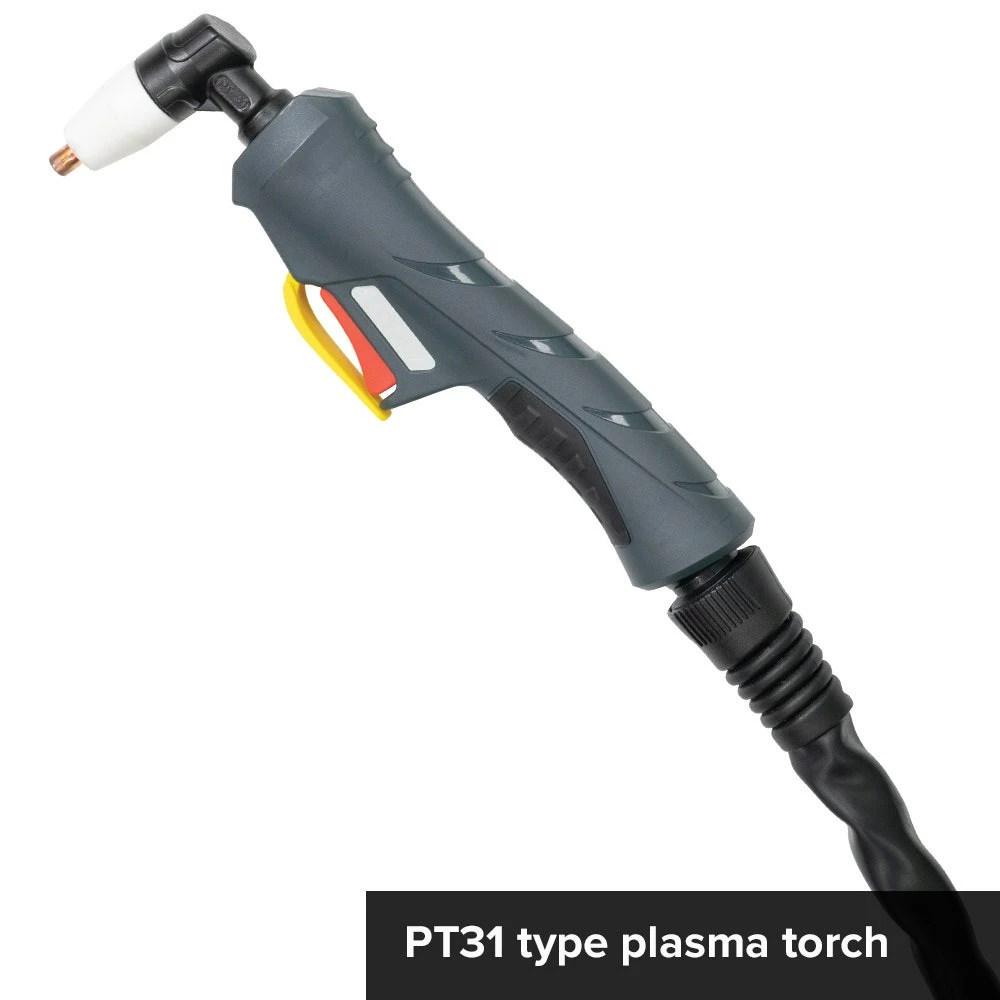

• 3m PT31 Plasma Cutting Torch

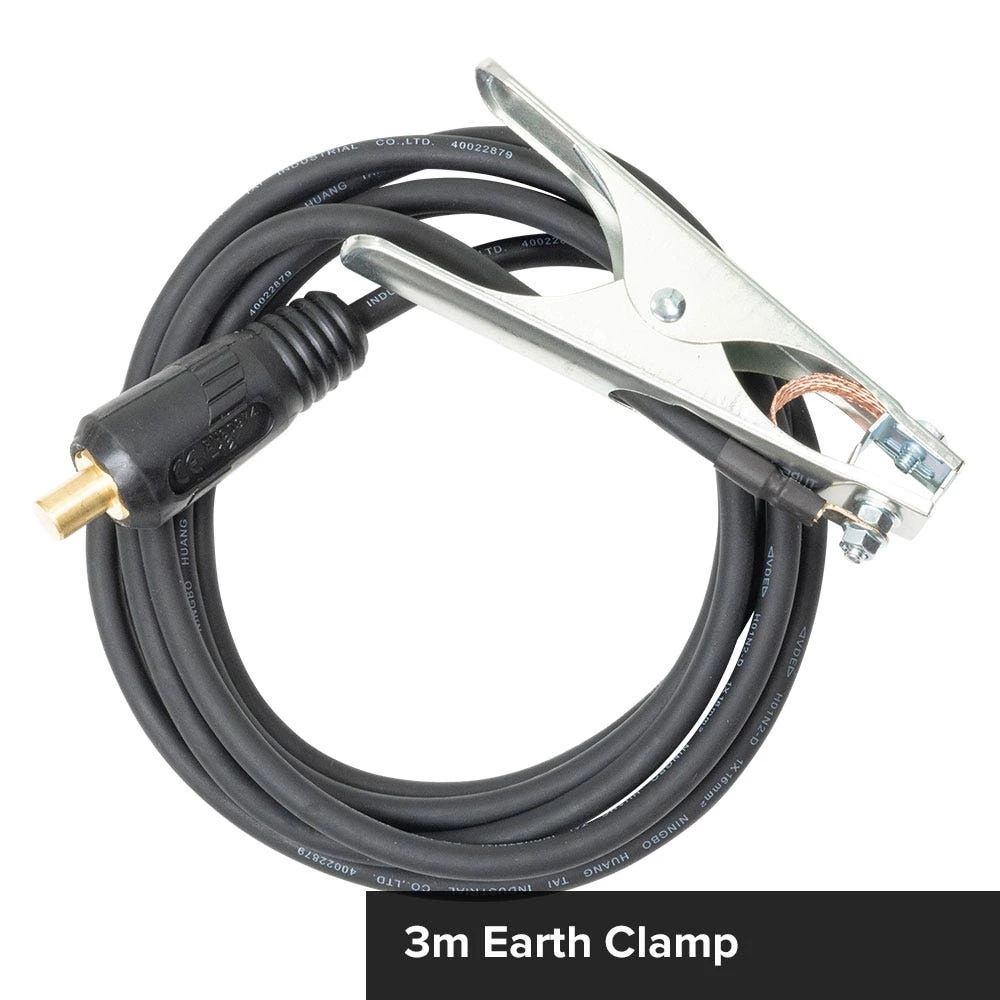

• 3m Earth clamp

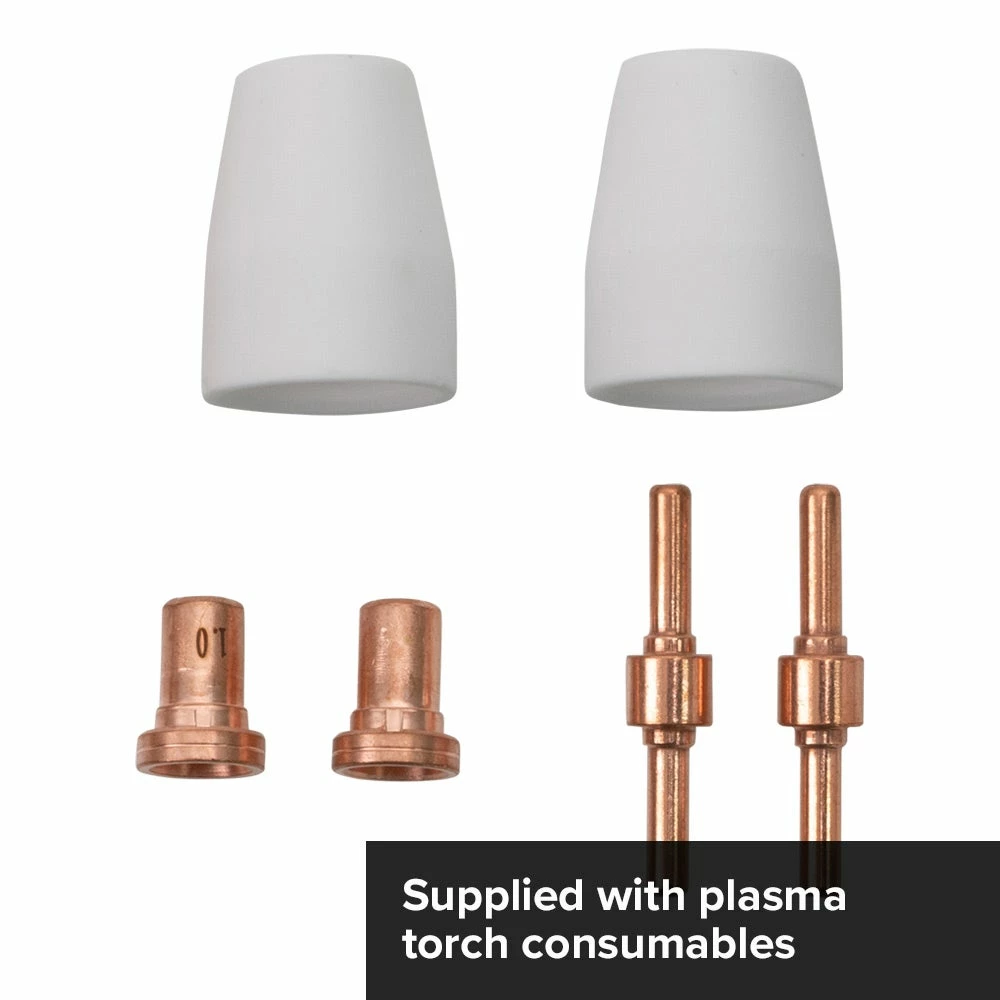

• 3xSpare nozzles
• 3xSpare electrodes
• Operating Manual
