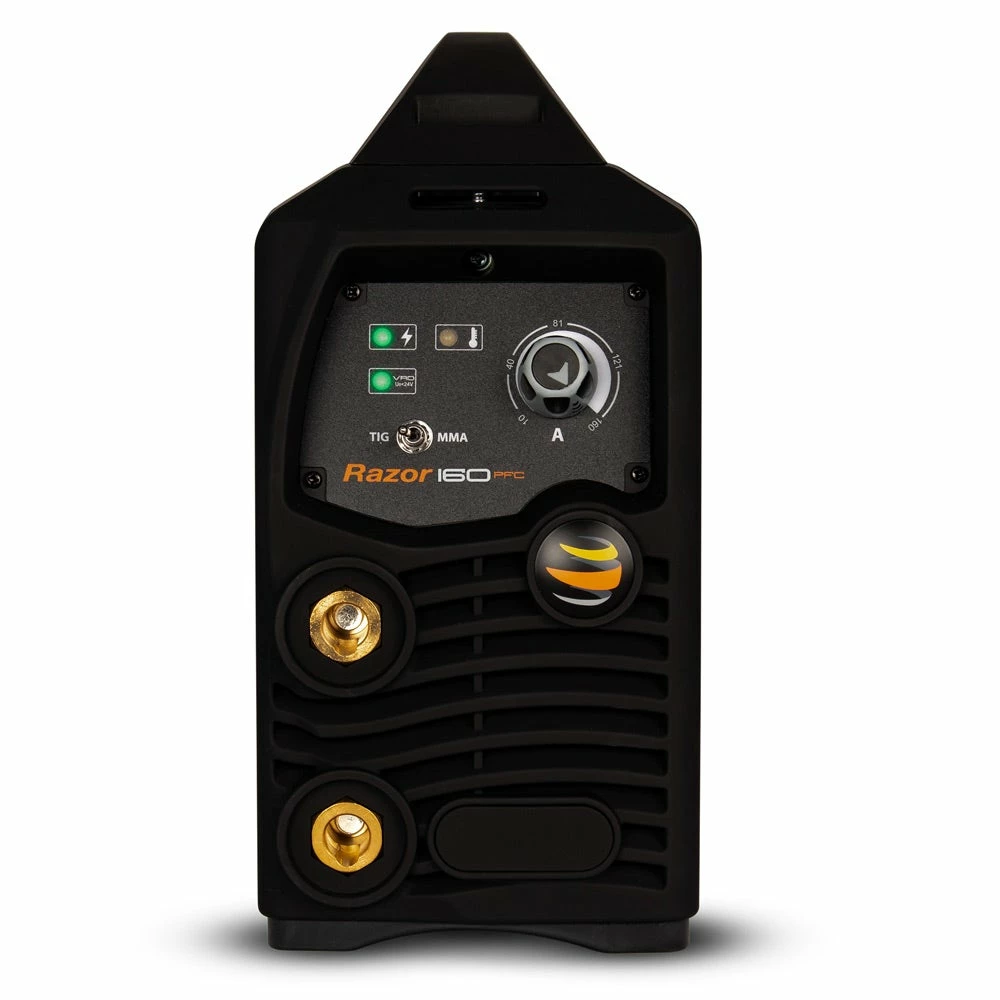

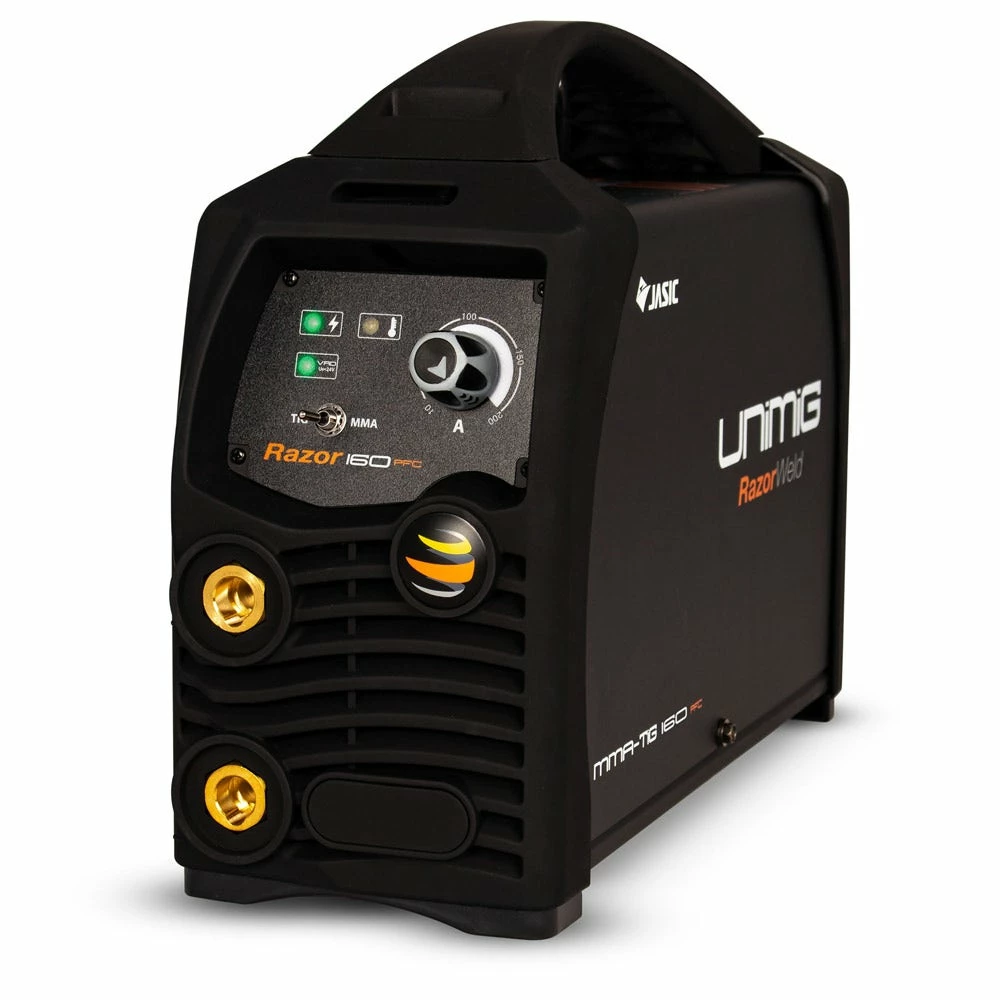

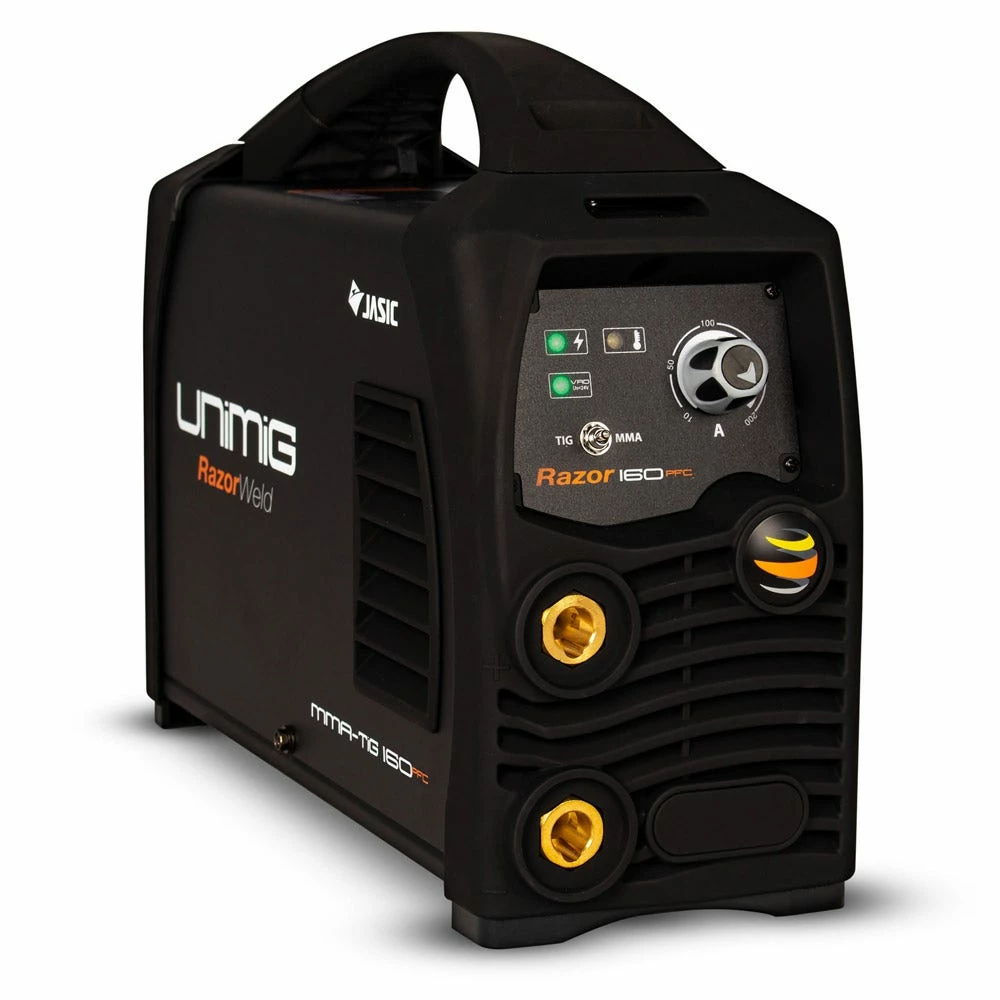

UNIMIG 160A Razorweld Arc PFC Stick/TIG Welder KUMJRRW160CA

The RAZOR™ ARC 160 PFC is the perfect STICK and TIG welder for the professional welder wanting a powerful machine with a portable body. Fitted with a 10 AMP plug, this machine is designed to be taken between the workshop and worksites. Connecting a 17V TIG Torch provides DC Lift Arc TIG functionality.

The RAZOR™ ARC 160 PFC features Power Factor Correction (PFC) for maximum electrical efficiency.

DC LIFT ARC TIG – Lift Arc ignition allows the arc to be started easily in DC TIG by simply touching the tungsten to the work piece and lifting it up to start the arc. This stops the tungsten tip sticking to the work piece and breaking the tip from the tungsten electrode.

POWER FACTOR CORRECTION – PFC gives you maximum electrical efficiency. It also automatically compensates for any voltage fluctuation.

Specifications

• Machine
  • PRIMARY INPUT VOLTAGE: 240V Single Phase
  • SUPPLY PLUG: 10 AMP
  • RATED INPUT POWER (kVA): 7.1
  • Ieff (A): 10.0
  • RATED OUTPUT: 10-160A
  • NO LOAD VOLTAGE (V): 78
  • PROTECTION CLASS: IP21S
  • INSULATION CLASS: F
  • POWER FACTOR: 0.99
  • MINIMUM GENERATOR (kVA): 8.0
  • DINSE CONNECTOR: 35/50
  • STANDARD: AS/NZ60974-1
  • SUITABLE MATERIAL: Mild Steel, Stainless Steel, Copper, Cast Iron
• TIG
  • TIG FUNCTION TYPE: DC Lift Arc
  • TIG WELDING CURRENT RANGE: 10-160A
  • TIG DUTY CYCLE @ 40°C: 45% @ 160A
  • TIG WELDING THICKNESS RANGE: 1-5mm
• Stick
  • STICK WELDING CURRENT RANGE: 10-160A
  • STICK DUTY CYCLE @ 40°C: 20% @ 160A
  • STICK ELECTRODE RANGE: 2.5-3.2mm
  • STICK WELDING THICKNESS RANGE: 2-10mm
• VRD: Yes

Inclusions

• RAZOR™ ARC 160 PFC STICK Welder
• 4m Twist Lock Electrode Holder
• 300 Amp Earth Clamp & Lead
• Operating Manual
